ABXING RD 500 series stage rental led screen
- Product Details
- Technical Specification
Product Overview
The ABXING RD Series is a professional 500×500mm rental LED display designed for versatile indoor and outdoor applications. Featuring quick-lock assembly, comprehensive corner protection, and dual-side maintenance access, it delivers outstanding reliability and visual performance for dynamic event environments. With optional curved and 90° corner configurations, it adapts seamlessly to diverse installation requirements.
Key Features

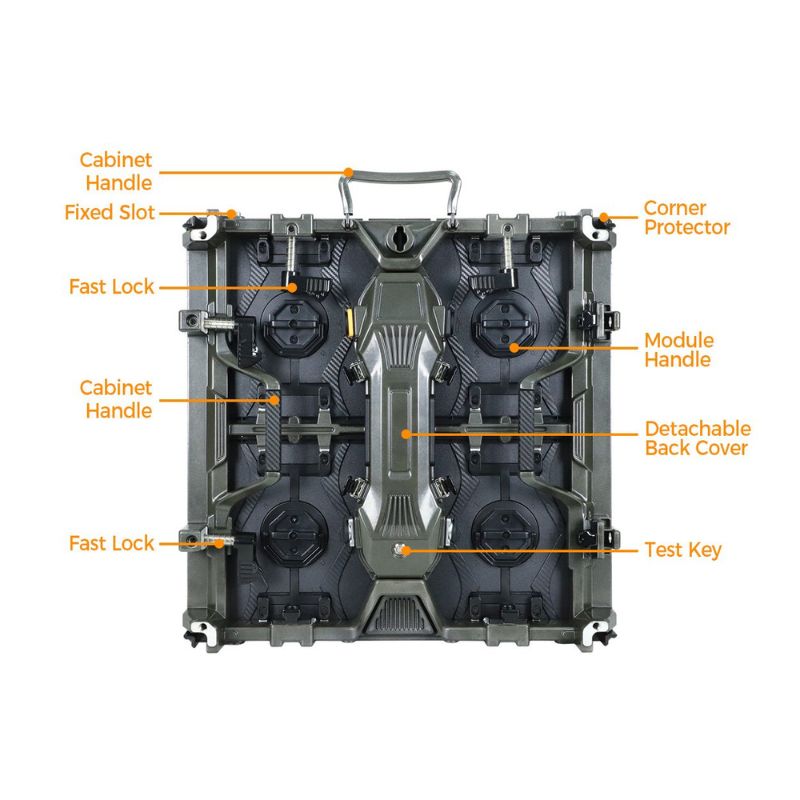

1. Precision Cabinet Engineering
· Comprehensive detail optimization ensures superior build quality
· Integrated carrying handles and secure fixing grooves
· Enhanced corner protectors prevent transportation damage
· Removable power box simplifies maintenance procedures
2. Dual-Access Service Design

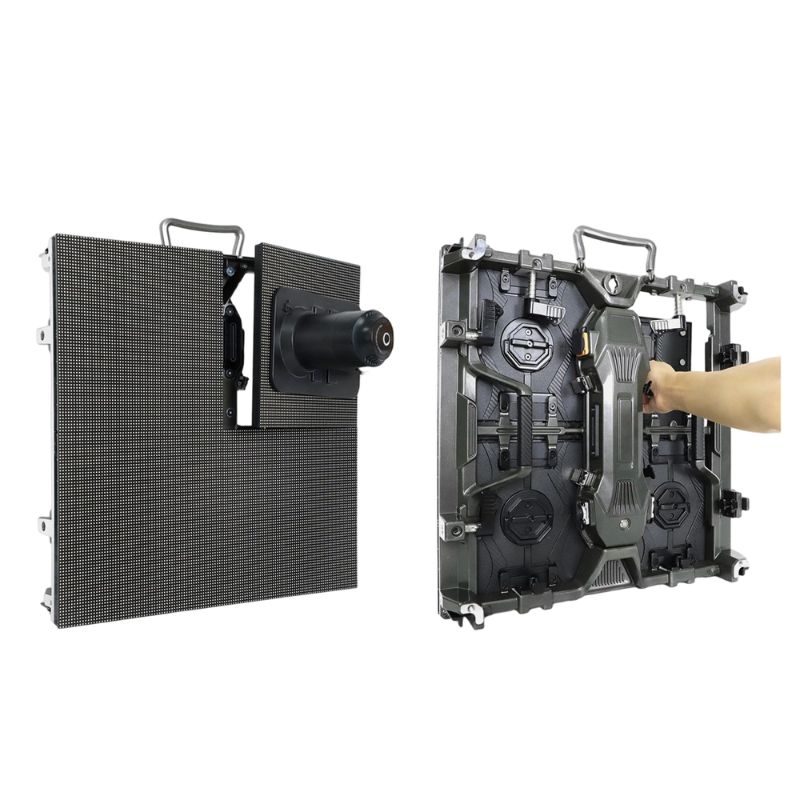

· Magnetic adsorption LED panels enable effortless module handling
· Full front and rear maintenance access reduces downtime
· Streamlined installation process enhances operational efficiency
3. Modular Serviceability

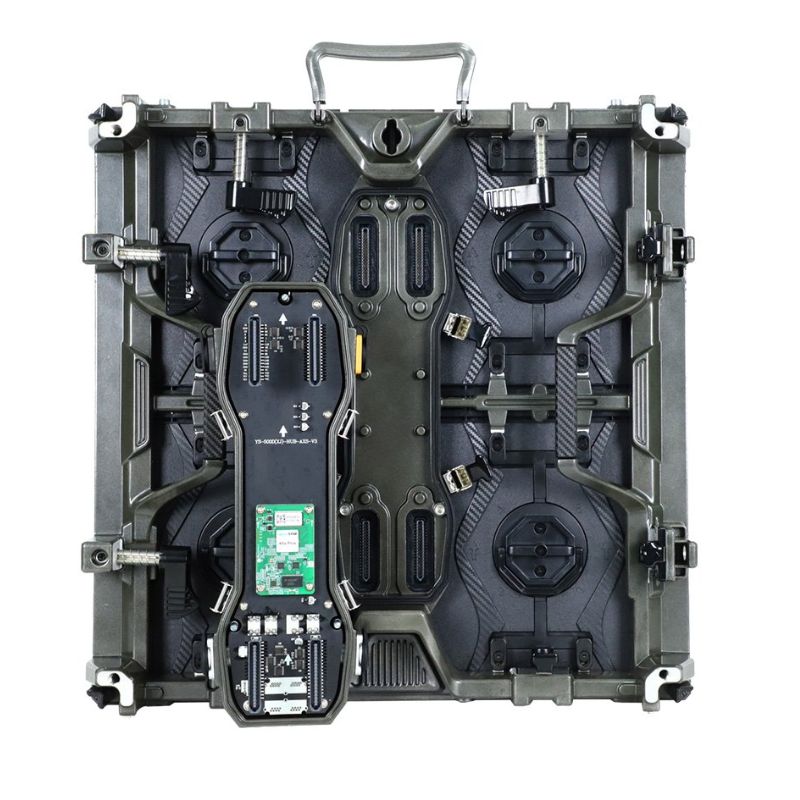

· Detachable power box with rigid connection design
· Quick-release buckles facilitate rapid back cover removal
· Simplified component access for efficient field maintenance
4. Flexible Installation Options

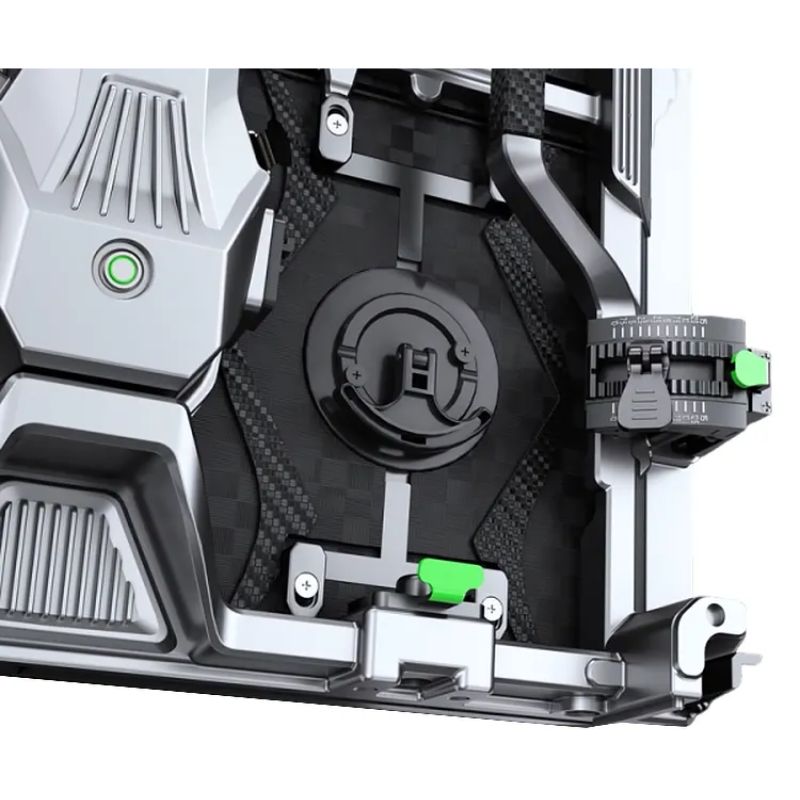

· High-precision arc locks available for curved configurations
· 45° beveled cabinets enable perfect 90° corner installations
· Adaptable to unique staging and architectural requirements
5. Exceptional Visual Performance
· 3840Hz~7680Hz high refresh rate ensures smooth motion rendering
· Advanced grayscale processing delivers superior color depth
· High brightness maintains visibility in various lighting conditions
· 140° wide viewing angle (horizontal/vertical) maximizes audience coverage
Technical Specifications
· Cabinet Size: 500×500mm
· Refresh Rate: 3840Hz~7680Hz
· Viewing Angle: 140° (H/V)
· Installation: Quick-lock system
· Maintenance: Front and rear Service
· Options: Curved locks, 45° beveled cabinets
Applications
· Live events and concert productions
· Exhibition displays and trade shows
· Corporate presentations and conferences
· Temporary installations and pop-up events
· Fixed venues requiring rental-grade reliability
Why Choose ABXING RD Series?
·Efficiency: Magnetic panels and quick-locks reduce setup time
·Reliability: Robust construction ensures consistent operation
·Flexibility: Multiple configuration options for creative setups
·Performance: High refresh rate and wide viewing angle enhance viewing experience
·Serviceability: Modular design simplifies maintenance and reduces costs
The ABXING RD Series combines technical excellence with practical functionality, providing rental companies and event producers with a reliable, high-performance display solution that excels in both temporary and semi-permanent applications.
| Outdoor 500x500mm ABXING RD Series Rental LED Display Series Technical Parameters | |||||
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P3.91 | P4.81 |
| Model | ABXING RD OP2.97-24S | ABXING RD OP2.97-21S | ABXING RD OP3.91-16S | ABXING RD OP3.91-8S | ABXING RD OP4.81-13S |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921(black) |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 65,536 | 65,536 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 64x64 | 64x64 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/8 | 1/13 |
| Cabinet Size (mm) | 500x500 | 500x500 | 500x500 | 500x500 | 500x500 |
| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 6000 | 4000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Indoor 500x500mm ABXING RD Series Rental LED Display Series Technical Parameters | |||||
| Pixel Pitch (mm) | P1.56(GOB) | P1.95(GOB) | P2.6(GOB) | P2.97 | P3.91 |
| Model | ABXING RD IP1.56-40S | ABXING RD IP1.95-32S | ABXING RD IP2.6-32S | ABXING RD IP2.97-28S | ABXING RD IP2.97-16S |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 147,928 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 160x160 | 128x128 | 96x96 | 84x84 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500x500 | 500x500 | 500x500 | 500x500 | 500x500 |
| Cabinet Weight (KG) | 7 | 7 | 7 | 7 | 7 |
| Brightness (CD/㎡) | 750 | 800 | 750 | 800 | 700 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
